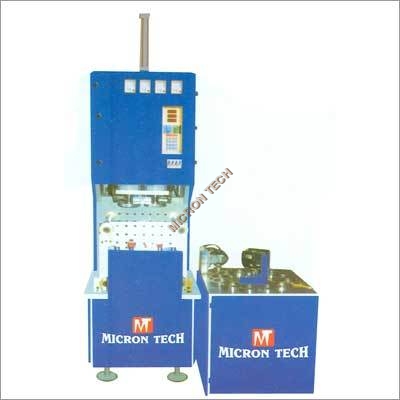

Pre Heating Rotary Oven

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

With nearly 2 decades of rich industrial experiences, we have been engaged in offering an innovative range of Pre Heating Rotary Oven. These ovens are extensively used in different industries like cosmetic, mineral, liquor & distilleries, pharmaceuticals, pesticides, chemical and liquor for packaging bottles and jars. We employ ultra modern techniques and quality approved materials to manufacture Pre Heating Rotary Oven, in accordance with industry set norms and standards. We offer these ovens to our clients at a nominal price.

Features:

Easy to install
Less maintenance
Space saving design

TECHNICAL SPECIFICATIONS

Description / Model	ST-2000-B(HP)	ST-2000-BJ(HP)	ST-5000-BJ(HP)	ST-5000-BJ(HP)
Product Volume	200ml-300ml	200ml-3000ml	500ml-7000ml	500ml-7000ml
Mould Cavity	2 Cavity	2 Cavity	1 Cavity	1 Cavity
Production PER HRS	500 Pcs - 600 Pcs	400 Pcs - 500 Pcs	240 Pcs - 320 Pcs	240 Pcs - 320 Pcs
Neck Dia Meter	28 mm	46mm-83mm-53mm-63mm	46mm-120mm	46 mm - 120 mm
TIE BAR Distance	360mm	360mm	360mm	360mm
Mould Width	350 mm	350 mm	350 mm	350 mm
Mould Thickness	180 mm	180 mm-200mm	200 mm - 250 mm	200 mm - 250 mm
Cavity Distance	185 mm	185 mm	0 mm - 0 mm	0 mm - 0 mm
Clamping Stroke	200 mm	200 mm	250 mm	250 mm
Clamping Force	8 TAN	8 TAN	10 TAN	10 TAN
Operation	Hydro-Penu	Hydro-Penu	Hydro-Penu	Hydro-Penu
Electric Heater Power	2 K.W.	2.5 K.W.	10 K.W.	2.5 K.W.
Heater Type	Kulfi Oven	Rotary Oven	Inferd Conveir	Inferd Conveir
Working Pressure	8 Kg - 10 Kg	8 Kg - 10 Kg	8 Kg - 10 Kg	8 Kg - 10 Kg
Blowing Pressure	15 Kg - 30 Kg	15 Kg - 30 Kg	20 Kg - 35 Kg	20 Kg - 35 Kg
Air Consumption	0.7 M3 / MIN	0.7 M3 / MIN	0.8 M3 / MIN	0.8 M3 / MIN
Staff Requirement	2 Person	2 Person	2 Person	2 Person
Air Compressor	15 HP - HP, 30 CFM	15 HP HP, 30 CFM	20 HP (LP), 42 CFM	20 HP (LP), 42 CFM
Area Requirement	30 Mtr	30 Mtr	35 Mtr	35 Mtr
Machine Weight	900 Kg Approx	900 Kg Approx	1000 Kg Approx	1000 Kg Approx
