Home » Products » PET Two-Stage Blow Molding Machine » PET Two-Stage Blow Molding Machine

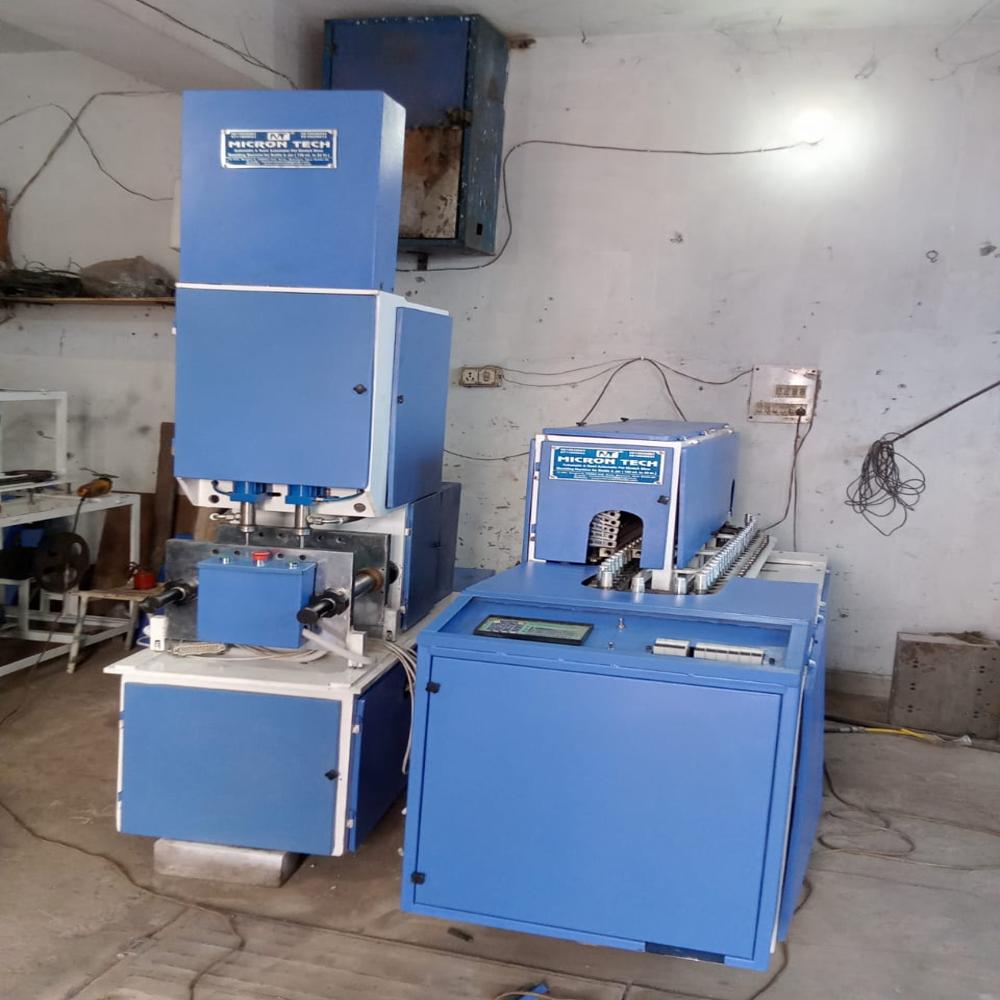

PET Two-Stage Blow Molding Machine

PET Two-Stage Blow Molding Machine
PET Two-Stage Blow Molding Machine
Send Inquiry
Product Code : PETTSBMM 14
Brand Name : MICRON TECH
Product Description

PET Two-Stage Blow Molding Machine

Our Pet Two-Stage Blow Molding Machines provide for very good wall distribution for round bottles. Furthermore, these have fast cycle times, fast changeovers and also a lot more flexibility, making these perfect for molding plastic parts. These are made in advanced manufacturing facilities and are tested by experts on all parameters to ensure zero defects. These are available in different specifications at market leading price for our esteemed customers.

Features:

  • These have a robust construction.

  • The PET Two-Stage Blow Molding Machines are easy to operate.

  • These have a long service life.



PET Two-Stage Blow Molding Machine

TECHNICAL SPECIFICATIONS

FULLY AUTOMATIC TWO STAGE PET PREFORM STRETCH BLOW MOLDING MACHINE

Description / Model

STA-500-B

STA-1000-B(HP)

STA-2000-B(HP)

STA-2000-J(HP)

Product Volume

30ml-500ml

50ml-1250ml

200ml-3000ml

200ml-3000ml

Mould Cavity

2 Cavity

2 Cavity

2 Cavity

2 Cavity

Production PER HRS

1800 Pcs - 2000 Pcs

1500 Pcs - 1800 Pcs

1200 Pcs - 1500 Pcs

600 Pcs - 800 Pcs

Neck Dia Meter

19 mm - 28 mm

25 mm - 28 mm

28 mm

46 mm - 83 mm

TIE BAR Distance

235mm

285mm

350mm

350mm

Mould Width

225 mm

280 mm

240 mm

340 mm

Mould Thickness

140 mm

150 mm

200 mm

200 mm

Cavity Distance

135 mm

135 mm

185 mm

185 mm

Clamping Stroke

100 mm

150 mm

150 mm

200 mm

Clamping Force

4 TAN

8 TAN

10 TAN

10 TAN

Operation

Hydro-Penu

Hydro-Penu

Hydro-Penu

Hydro-Penu

Electric Heater Power

12 K.W.

15 K.W.

18 K.W.

18 K.W.

Heater Type

Inferd Conveir

Inferd Conveir

Inferd Conveir

Inferd Conveir

Working Pressure

6 Kg - 8 Kg

8 Kg - 10 Kg

8 Kg - 10 Kg

8 Kg - 10 Kg

Blowing Pressure

15 Kg - 18 Kg

30 Kg - 35 Kg

30 Kg - 40 Kg

30 Kg - 40 Kg

Air Consumption

0.9 M3 / MIN

1. M3 / MIN

1. M3 / MIN

1.02 M3 / MIN

Staff Requirement

2 Person

2 Person

2 Person

2 Person

Air Compressor

20 HP (LP), 52 CFM

20 HP  (LP), 42 CFM

20 HP (LP), 52 CFM

25 HP  (LP), 52 CFM

Area Requirement

30 Mtr

30 Mtr

35 Mtr

35 Mtr

Machine Weight

1500 Kg Approx

1800 Kg Approx

2200 Kg Approx

2500 Kg Approx
