Product Description

We have emerged as a renowned business organization, presently engaged in offering a superior range of Pet Bottling Machinery. These machines are largely demanded in packaging, food processing, cosmetic and pharmaceutical industries for producing pet bottles. In order to manufacture high quality Pet Bottling Machinery, our professionals employ advanced machines and utilize quality tested material procured from the authentic vendors. We can also customize these machines as per the needs of the clients.

Features:

Energy efficient
Less maintenance
Optimum performance

TECHNICAL SPECIFICATIONS

SEMI AUTOMATIC PET PREFORM STRETCH BLOW MOULDING MACHINE 500ML-25LTR.BOTTLE & JAR

Description / Model	ST-500-B(LP)	ST-1000-B(LP)	ST-1000-B(HP)	ST-1000-B(HP)
Product Volume	30ml-500ml	50ml-1250ml	50ml-1250ml	50ml-1250ml
Mould Cavity	2 Cavity	2 Cavity	2 Cavity	4 Cavity
Production PER HRS	500 Pcs - 700 Pcs	600 Pcs - 700 Pcs	1000 Pcs - 1200 Pcs	2000 Pcs - 2400 Pcs
Neck Dia Meter	19 mm - 28 mm	25 mm - 28 mm	25 mm - 28 mm	25 mm - 28 mm
TIE BAR Distance	235mm	285mm	285mm	430mm
Mould Width	225 mm	280 mm	280 mm	420 mm
Mould Thickness	120 mm	140 mm -150 mm	140 mm	140 mm
Cavity Distance	125 mm	135 mm	135 mm	135 mm
Clamping Stroke	100 mm	150 mm	150 mm	150 mm
Clamping Force	2 TAN	4 TAN	4 TAN	8 TAN
Operation	Hydro-Penu	Hydro-Penu	Hydro-Penu	Hydro-Penu
Electric Heater Power	1.5 K.W.	2 K.W.	10 K.W.	10 K.W.
Heater Type	Kulfi-Oven	Kulfi-Oven	Inferd Conveir	Inferd Conveir
Working Pressure	5 Kg - 6 Kg	6 Kg - 8 Kg	6 Kg - 8 Kg	8 Kg - 10 Kg
Blowing Pressure	10 Kg - 12 Kg	12 Kg - 15 Kg	12 Kg - 15 Kg	12 Kg - 30 Kg
Air Consumption	0.4 M³ / MIN	0.5 M³ / MIN	0.8 M³ / MIN	1. M³ / MIN
Staff Requirement	2 Person	2 Person	2 Person	2 Person
Air Compressor	7.5 HP - LP, 20 CFM	10 HP - LP, 35 CFM	15 HP - LP, 38 CFM	20 HP - HP, 42 CFM
Area Requirement	20 Mtr	25 Mtr	30 Mtr	35 Mtr
Machine Weight	500 Kg Approx	600 Kg Approx	700 Kg Approx	800 Kg Approx

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pet Machine' category

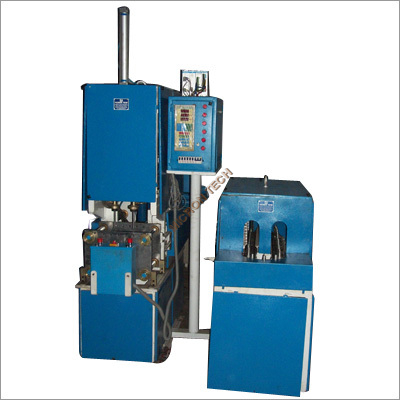

Pet Bottle Making Machine Minimum Order Quantity : 1 Voltage : 220/ 415 Volt(v) Frame Type : Metal Frame Operating Type : Automatic Warranty : 1 YEAR Frequency : 50/6 Hetrz (Hz) Usage & Applications : Industrial Power Source : Electricity Product Type : Other, Pet Bottle Making Machine Features : Heavy Duty Machine Type : pet bottle making machine Color : Blue Cooling System : Air Cooling Noise Level : low db Surface Treatment : Painted
