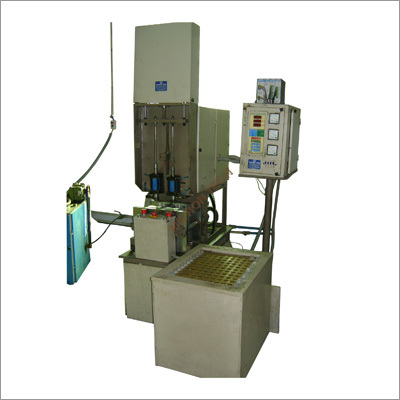

Automatic Pet Blow Moulding Machine

Automatic Pet Blow Moulding Machine
Automatic Pet Blow Moulding Machine
Send Inquiry
Product Code : APBMM 03
Brand Name : Pet Bottle Machine
Product Description

Owing to our experienced workforce and advance machining facility, we are engaged in offering an exclusive range of Automatic Pet Blow Moulding Machine. These machines are made in complete adherence with international quality standards by using best quality materials. Our Automatic Pet Blow Moulding Machine is used for designing pet bottles in various sizes and capacities. We adhere to the parameters of the national and international quality standards to provide the clients with utmost satisfaction in terms of quality.

Features:

  • Silent operation
  • Less power consumption
  • Corrosion resistant body
TECHNICAL SPECIFICATIONS

SEMI AUTOMATIC PET PREFORM STRETCH BLOW MOULDING MACHINE 500ML-25LTR.BOTTLE  & JAR

Description / Model

ST-500-B(LP)

ST-1000-B(LP)

ST-1000-B(HP)

ST-1000-B(HP)

Product Volume

30ml-500ml

50ml-1250ml

50ml-1250ml

50ml-1250ml

Mould Cavity

2 Cavity

2 Cavity

2 Cavity

4 Cavity

Production PER HRS

500 Pcs - 700 Pcs

600 Pcs - 700 Pcs

1000 Pcs - 1200 Pcs

2000 Pcs - 2400 Pcs

Neck Dia Meter

19 mm - 28 mm

25 mm - 28 mm

25 mm - 28 mm

25 mm - 28 mm

TIE BAR Distance

235mm

285mm

285mm

430mm

Mould Width

225 mm

280 mm

280 mm

420 mm

Mould Thickness

120 mm

140 mm -150 mm

140 mm

140 mm

Cavity Distance

125 mm

135 mm

135 mm

135 mm

Clamping Stroke

100 mm

150 mm

150 mm

150 mm

Clamping Force

2 TAN

4 TAN

4 TAN

8 TAN

Operation

Hydro-Penu

Hydro-Penu

Hydro-Penu

Hydro-Penu

Electric Heater Power

1.5 K.W.

2 K.W.

10 K.W.

10 K.W.

Heater Type

Kulfi-Oven

Kulfi-Oven

Inferd Conveir

Inferd Conveir

Working Pressure

5 Kg - 6 Kg

6 Kg - 8 Kg

6 Kg - 8 Kg

8 Kg - 10 Kg

Blowing Pressure

10 Kg - 12 Kg

12 Kg - 15 Kg

12 Kg - 15 Kg

12 Kg - 30 Kg

Air Consumption

0.4 M3 / MIN

0.5 M3 / MIN

0.8 M3 / MIN

1. M3 / MIN

Staff Requirement

2 Person

2 Person

2 Person

2 Person

Air Compressor

7.5 HP - LP, 20 CFM

10 HP - LP, 35 CFM

15 HP - LP, 38 CFM

20 HP - HP, 42 CFM

Area Requirement

20 Mtr

25 Mtr

30 Mtr

35 Mtr

Machine Weight

500 Kg Approx

600 Kg Approx

700 Kg Approx

800 Kg Approx
