20 Ltr PET Stretch Blowing Machine

Get a Price/Quote

Product Details:

Voltage 220/ 415 Volt(v)
Cooling System Air Cooling
Noise Level low db
Machine Type pet stretch blowing machine
Frequency 50/6 Hetrz (Hz)
Frame Type Metal Frame
Features Heavy Duty
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

20 Ltr PET Stretch Blowing Machine Price And Quantity

Minimum Order Quantity 1 , , Piece

20 Ltr PET Stretch Blowing Machine Product Specifications

Color Blue
Frame Type Metal Frame
Power Source Electricity
Features Heavy Duty
Machine Type pet stretch blowing machine
Frequency 50/6 Hetrz (Hz)
Noise Level low db
Cooling System Air Cooling
Usage & Applications Industrial
Operating Type Automatic
Voltage 220/ 415 Volt(v)
Product Type 20 Ltr PET Stretch Blowing Machine
Warranty 1 YEAR

20 Ltr PET Stretch Blowing Machine Trade Information

Supply Ability 10 , , Piece Per Month
Delivery Time 10 Days

Product Description

Established in the year 1999, we are known as a prominent manufacturer and supplier of PET Stretch Blowing Machine. These machines are used for producing pet bottles that are used for packaging water, juice, beverages, milk and liquors. Precisely designed at our state of the art machining facility, our PET Stretch Blowing Machine are made using quality materials procured from authentic vendors of the market. Our clients have the advantage to customize these machines as per their needs.

Features:

Reliable operation
Easy to operate
Sturdy design

Specification:-

Description / Model	ST-2000-B(HP)
Product Volume	10 Ltr-25ltr
Mould Cavity	1 Cavity
Production PER HRS	80 Pcs "120 Pcs
Neck Dia Meter	52 mm "135 mm
TIE BAR Distance	450mm
Mould Width	400 mm
Mould Thickness	350 mm
Cavity Distance	0 mm - 0 mm
Clamping Stroke	350 mm
Clamping Force	30 TAN
Operation	Hydro-Penu
Electric Heater Power	15-18 K.W.
Heater Type	Inferd Conveir
Working Pressure	10 Kg "12 Kg
Blowing Pressure	30 Kg "35 Kg
Air Consumption	1. M3 / MIN
Staff Requirement	2 Person
Air Compressor	20 HP "HP, 42 CFM
Area Requirement	40 Mtr
Machine Weight	2000 Kg Approx

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pet Jar Machine' category

Pet Bottle Blowing Machine Power Source : Other, Electric Frame Type : Sturdy Frame Features : Durable High Precision Easy Operation Machine Type : SemiAutomatic Frequency : 50 Hz Noise Level : Low Control System : Other, PLC Controlled Usage & Applications : PET Bottle Manufacturing Warranty : 1 year Color : Blue Cooling System : Water Cooling Surface Treatment : Powder Coated, Other Operating Type : Other, Hydraulic Voltage : 220240V Product Type : Other, Pet Bottle Blowing Machine Accuracy : High Power : 5 kW Weight (kg) : 300 kg Dimension (L*W*H) : 800x600x1800 mm Production Capacity : 500 bottles/hour Operating Temperature : Ambient Connectivity Options : None Technology : Stretch Blow Molding, Other Power Rating : 220V Lubricating System : Automatic Lubrication Pressure : 16 bar

Send Inquiry

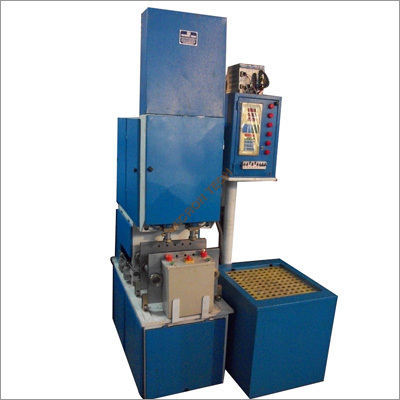

Pet Jar Making Machine Price : 450000.0 INR/Piece Minimum Order Quantity : 1 Power Source : Electricity Frame Type : Metal Frame Features : Heavy Duty Machine Type : jar making machine Frequency : 50/6 Hetrz (Hz) Hertz (HZ) Noise Level : low db db Usage & Applications : Industrial Warranty : 1 YEAR Color : Blue Cooling System : Air Cooling Surface Treatment : Painted Operating Type : Automatic Voltage : 220/ 415 Volt(v) Volt (v) Product Type : Other
